HMP seriers of horizontal punching stations, high efficiency, simple operation, easy maintance.

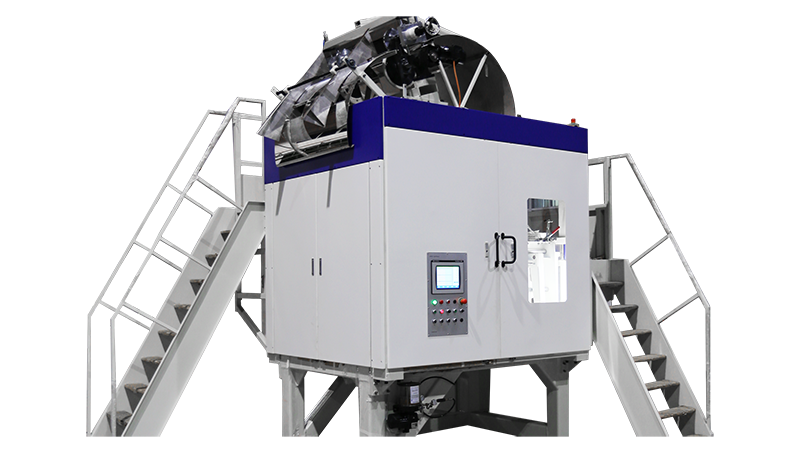

HMP80&HMP95 Horizontal Punching Station
Firm machine design, high-quality production
● Firm design of HMP series horizontal punching station, fast punching and small loss
● Verified horizontal punching technology, high precision and efficiency
● Variable frequency motor controls all circular operation
● Easy and convenient equipment concept for users
● Correction function guarantees highly efficient equipment operation
● Automatic lubricating system, optimized design makes it convenient for equipment maintenance
● Can be used with HMD50, HMD60 and HMD65 forming machines
Technical Data | HMP80 | HMP95 |
Maximum punching area | 780x210 mm | 930x270 mm |
Maximum mold dimension | 1000x505 mm | 1150x650 mm |
Maximum mold weight | 1100 kg | 1400 kg |
Maximum forming product height | 125 mm | 125 mm |
Dry cycle speed | 120 cycles/ min | 110 cycles/ min |
Maximum film width | 800 mm | 950 mm |
