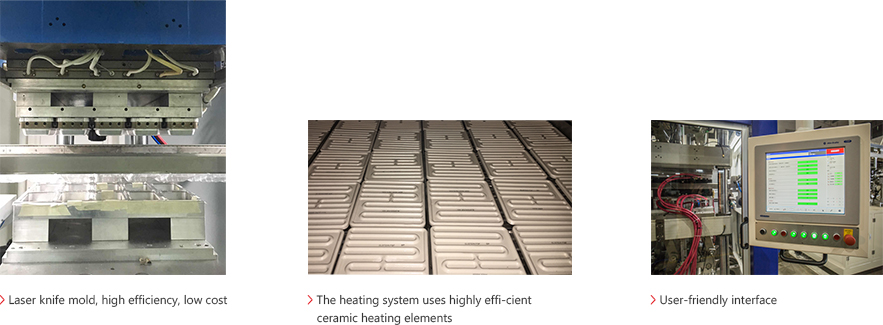

Combine the pre-heating station, forming station, cutting station and stacking stations together. Vitrified heating system and laser cutting, high efficiency and low cost. Color touch screen, simple operating system.
HMDK65 Three-station Full-automatic Air Compressing Forming Machine
● Integrated forming, punching, stacking, and waste winding station, sheet stock treatment is more smooth, and energy
consumption is less
● Forming and punching station use firm cast iron structure, matched with roller bearing’s crankshaft to guarantee perfect
forming, cutting
● Unique vertical stacking concept, ensure products successive stacking
● Clean production process: No burrs, no waste materials, deliver to packing carton box directly
Technical Data | HMD65 | HMDK65 |
Maximum forming area | 845x645 mm | 845x645 mm |
Minimum forming area | 400x300 mm | 400x300 mm |
Maximum mold dimension | 870x670 mm | 870x670 mm |
Maximum mold weight | 400 kg | 400 kg |
Height over sheet material forming part | 150 mm | 125 mm |
Height under sheet material forming part | 125 mm | 110 mm |
Dry cycle speed | 45 cycles/ min | 45 cycles/ min |
Maximum film width | 900 mm | 900 mm |
Operating pressure | 6 bar | 6 bar |
